Controllers

By far the most important controller in Garritan instrument libraries is the modulation wheel (MIDI controller #1), which is used to control the volume and timbre of all sustaining Garritan instruments. (By "sustaining instruments," we mean wind and bowed string instruments). Because the modulation wheel controls both volume and timbre, crescendos don’t just sound like someone turning up the volume dial on a stereo system — as the dynamic level increases, brass instruments get brassier, string instruments get brighter, and so on. Using the modulation wheel, you will hear extremely realistic timbral shifts as instruments get louder and softer.

When using Garritan instruments with Finale, you will generally not have to worry about the modulation wheel so long as Human Playback is turned on and Dynamic Approach for Sustaining Instruments is set to Automatic in your Human Playback Preferences. Provided these options are set correctly, Human Playback automatically sends modulation wheel data to the Garritan instruments during playback to shape phrases, realize dynamics, interpret crescendos and diminuendos, etc.

Keep in mind that the position of your modulation wheel while entering music in Speedy Entry or Simple Entry has no effect on playback. Instead, Human Playback looks to things like dynamics, hairpins, and musical context to create the most musical dynamic shaping for all your Garritan instruments when playing back your score.

There are just a few more things you should keep in mind if you have MIDI Thru set to its default Smart setting. First, notes outside the range of the selected Garritan instrument (the range for each instrument is highlighted in the keyboard displayed in the ARIA Player) do not sound. For instance, if you try to enter the A below middle C in an oboe staff — a note not playable on oboe — no note will sound during Speedy Entry or MIDI-based Simple Entry, nor will it sound during playback. Also, the maximum number of simultaneously sounding notes for each staff is limited by the polyphony of the currently selected Garritan instrument (see the Performance Tips section for more information about polyphony). That means if you play a chord on your MIDI keyboard while entering music into a solo flute staff, only one note will sound.

Note: If your score does not include piano, it's possible to load the instrument into an unused channel and use it for playback during Fixed MIDI Thru note entry only

Some users find these limitations annoying, and prefer to set MIDI Thru to a single fixed channel. Doing this means that no matter what staff you have selected with the Speedy Entry or Simple Entry tool, you will always hear the same instrument during note entry. (And during note entry only, of course! Playback is unaffected by the MIDI Thru setting.) Most users will choose to select a fixed channel which has been assigned to a piano or other high-polyphony instrument with a wide range.

See The Mixer and Studio View.

For sustaining Garritan instruments like winds and strings, Controller #21 affects the length of the release - the sound after the key has been released. Increasing this value results in a long, slow release, while decreasing it results in a short, sharp release. For non-sustaining instruments — like xylophone, harp, or pizzicato strings — this value controls the maximum length of the note. Increasing it will result in notes that take longer to decay; decreasing it will cause notes to decay more quickly. When Humanize Rolls and Trills is checked in the Human Playback Preferences dialog box, Human Playback automatically manipulates this controller to create more realistic trills and tremolos.

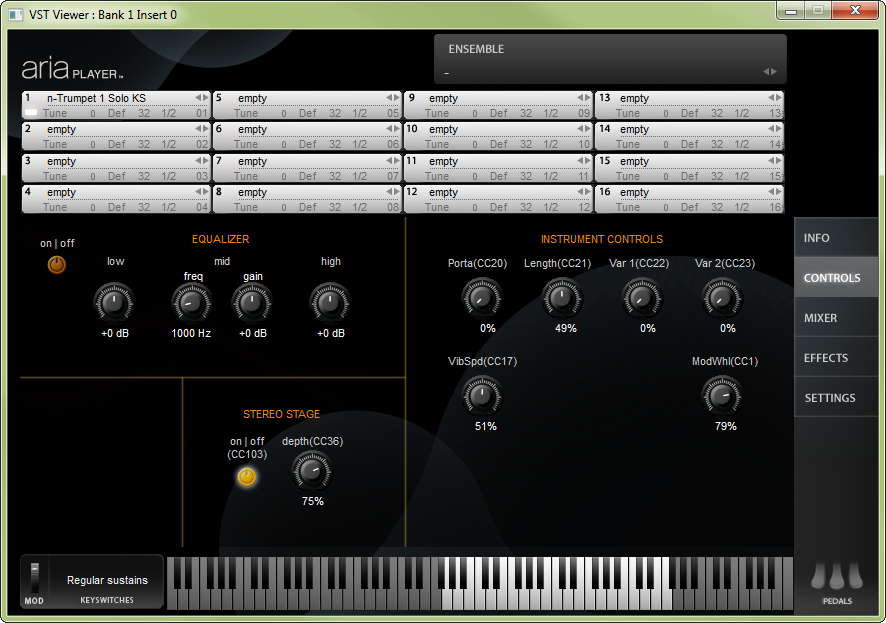

It is also possible to modify Controller #21 in the ARIA Player by adjusting the knob marked "Length." Click and hold on the knob, then drag straight up to increase the length, or straight down to decrease it. Each instrument has its own independent length setting, and therefore must be individually adjusted. You may wish to increase the length to 80% for pizzicato bass notes that are meant to last full value, or perhaps decrease the length to 20-25% for every player in a string quartet if you want additional separation between fast-moving notes. Note that for sustaining instruments, this controller does not affect the duration of the note itself, but rather the abruptness of the release.

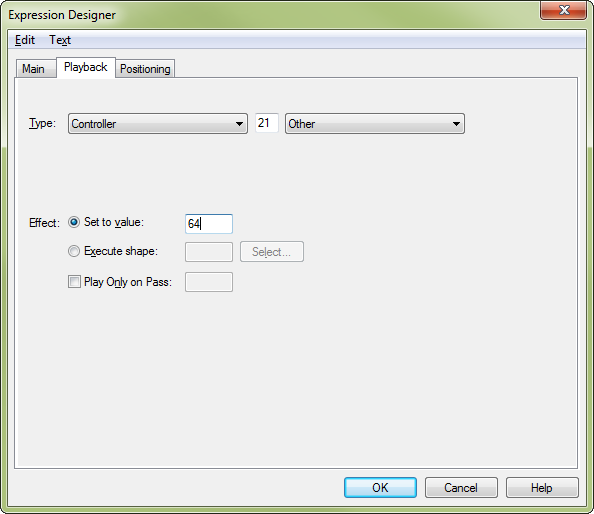

It is also possible to create a Finale expression that will modify this (or any) MIDI controller during playback, as seen in the illustration below.

Two things to keep in mind if you use Finale expressions to modify MIDI controllers:

• Finale always uses absolute MIDI values (0-127) instead of percentages (0-100%). In other words, a length of 50% in the ARIA Player is equivalent to a length of 64 (out of 127) in Finale.
• Human Playback must be set to Incorporate Continuous Data in the MIDI Data tab of the Human Playback Preferences dialog box.

It is possible to use these two controllers to introduce a certain amount of random variability from note to note when using Garritan instruments. Controller #22 — called “Var 1” — controls the amount of variation in the intonation, while controller #23— called “Var 2” — controls the amount of variation in the timbre. When Humanize Rolls and Trills is checked in the Human Playback Preferences, Human Playback uses these controllers to create more realistic timpani, bass drum, and side drum rolls.

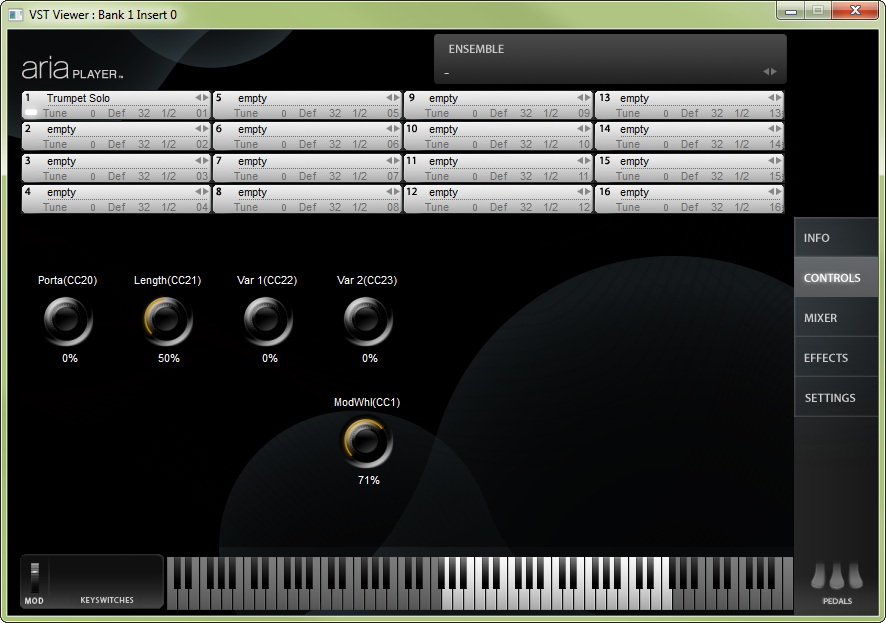

As with the Length controller, it is also possible to modify these settings in the ARIA Player. The default value for both Var 1 and Var 2 is 0%. Click and hold on the knob, then drag straight up to increase the variability, or straight down to decrease it. A variability of 5% or so, or 6 out of 127 can substantially humanize a performance, especially when it comes to arpeggios and fast-moving passages played by several instruments in unison. Each instrument has its own independent setting and can be individually adjusted. Again, it is also possible to create Finale expressions that will modify the variability controllers during playback (see above).

Sustaining Garritan instruments can produce extremely realistic slurs and legato playing. In Garritan Instruments for Finale and other Garritan libraries' Notation set, legato playing is controlled by MIDI controller #68. Human Playback automatically interprets the slur markings in your score, creating smooth transitions between slurred notes.
